SPOTFIRE TUBE AUDIO® - SE5

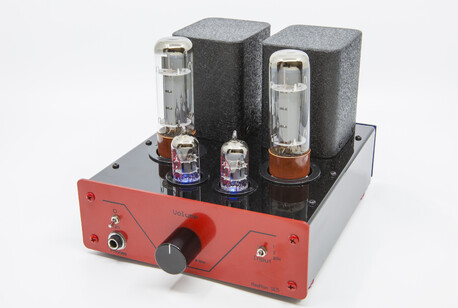

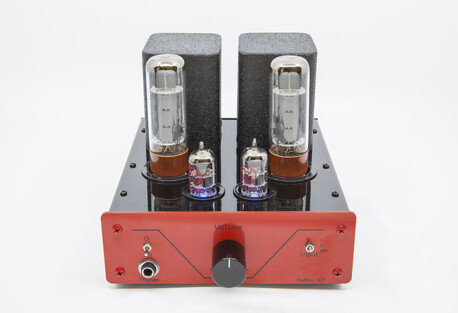

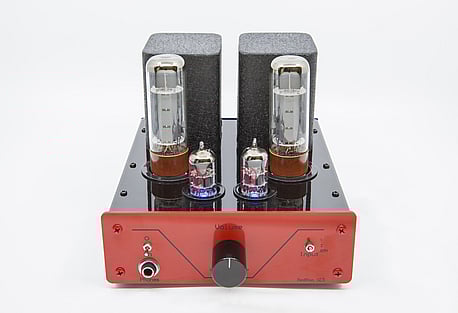

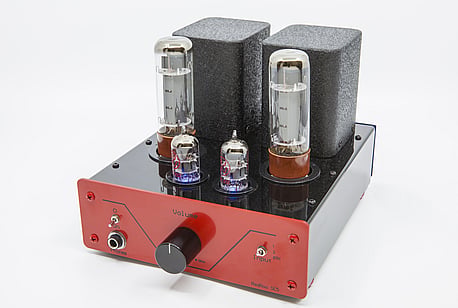

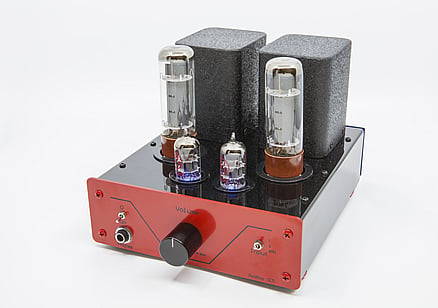

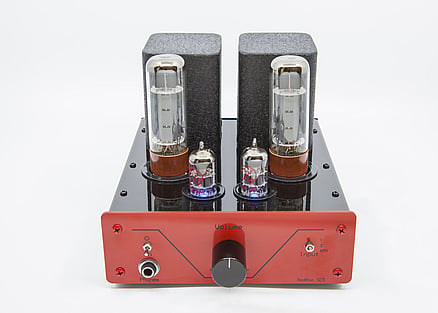

SE5 Single-Ended EL34 Stereo Valve Amplifier Kit
The SpotFire SE5 is a 5-watt single-ended EL34 amplifier designed to deliver the qualities that make classic valve amplifiers enduring: simplicity of signal path, harmonic structure, and musical immediacy — implemented with modern engineering discipline.
At its core is a true single-ended Class-A topology, valued for its natural midrange and direct musical presentation, combined with contemporary refinements for stability, low noise, and predictable performance.
Why We Designed it
Many modern valve amplifiers attempt to recreate the appearance and construction techniques of the 1950s.
The SpotFire SE5 takes a different approach.
It combines the musical qualities of a traditional single-ended EL34 output stage and a Constant Current Draw Amplifier (CCDA), with modern engineering techniques including printed circuit board construction, a compact switch-mode high-voltage power supply and carefully optimised operating conditions.
The objective was never to produce the highest output power.
Instead, it was to produce an amplifier that performs consistently, measures well and allows listeners to enjoy music for many years.
Engineering Highlights
Pure Class A Operation
Read more → What Is Class A Operation?
The EL34 output valve operates in true single-ended Class A.
Oversized Output Transformers
Read more → Why Do Tube Amplifiers Need Output Transformers?
The output transformer is one of the most important components in any valve amplifier.
The SE5 uses generously specified transformers to maximise bandwidth, reduce distortion and improve low-frequency performance.
Modern Power Supply
Read more → Why Do Tube Amplifiers Use High Voltages?
Instead of a conventional mains transformer, the SE5 uses a carefully designed switch-mode high-voltage power supply driven from a safe external 12-volt power adaptor.
Advantages include:
smaller size
lower weight
no mains-frequency hum
excellent regulation
improved efficiency
Designed for Reliability
Every component operates comfortably within its ratings wherever practical.
This conservative approach improves long-term reliability and valve life while reducing heat stress.
Clean Overload Behaviour
The cathode-follower drive stage allows smooth, musical clipping with fast recovery if the amplifier is overdriven.
This is particularly important in low-power amplifiers, where dynamic music peaks can briefly exceed available output power.
Low-Noise Performance
A purpose-designed power supply, DC-powered heaters, and earth-loop breaker resistors work together to minimise hum and noise, making the SE5 well suited to high-efficiency loudspeakers.
Output Stage Operating Modes
The EL34 output stage can be configured for:
Triode
Pentode
Ultralinear
For most users, ultralinear operation provides the best balance of output power and linearity.
When the optional audiophile upgrade is selected, operation is limited to triode or pentode modes, as ultralinear operation is not supported with the upgraded transformers.
Component Quality

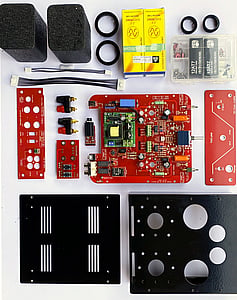

The SE5 uses high-quality components selected for electrical performance, reliability, and availability, including:
Audio-grade polycarbonate coupling capacitors
Low-ESR conductive polymer hybrid aluminium electrolytic cathode-bypass capacitors
Gold-pin valve sockets
Large output transformers for controlled low-frequency performance
The printed circuit boards are extra-thick with 2-oz copper tracks to improve durability and thermal performance.
Controls & Connectivity
The front panel features a solid metal volume control and toggle switches for power and input selection, along with a ¼-inch headphone output.
Rear-panel connections include:
Loudspeaker terminals with impedance selector
Feedback on/off switch for operation with or without global negative feedback
Two RCA line-level inputs
A 3.5 mm auxiliary input shared with the second RCA input
A Bluetooth input for streaming from a phone or computer
Audiophile Upgrade Option
An optional audiophile upgrade is available, featuring premium output transformers and Mundorf EVO or Auricap coupling capacitors.
This upgrade provides a noticeable improvement in sound quality when used with high-resolution sources and high-quality loudspeakers.
Ultralinear operation is not supported with this option; triode mode is generally preferred by experienced listeners.
Power Supply & Safety
Mains power does not enter the chassis.
The SE5 uses a fully enclosed, inverter-based high-voltage power supply, with no exposed mains wiring.
The mains power supply complies with applicable Australian safety standards and regulations.
Internal circuitry contains potentially hazardous voltages of up to 280 V DC and must be treated accordingly during assembly and servicing.
Physical Size
The SE5 has a compact footprint suitable for bench or rack placement.
Dimensions:
185 mm (W) × 215 mm (D) × 165 mm (H)
Pricing
The basic SE5 kit (excluding valves) is AUD $1089.
Refer to our shop page for additional options and pricing.
🎧 How Does It Compare to Other Low-Power SE Amps?
| Feature / Design Point | SpotFire SE5 | Typical Budget SE Amp |
|---|---|---|
| Cathode follower driver | ✅ Yes | ❌ No |
| DC heater supply | ✅ Yes | ❌ No (AC heaters) |
| Grid current handling | ✅ Robust | ⚠️ Weak |
| Hum/noise performance | ✅ Very low | ⚠️ Variable |
| Mode switching (triode/UL) | ✅ Yes | ❌ Rare |
| DIY accessibility | ✅ Excellent | ⚠️ Depends |
| Overload behavior | ✅ Smooth, fast recovery | ❌ Often harsh, blocks |
| SE5 model footprint | ✅ Small footprint – suitable for desktops or compact setups | ⚠️ Very large footprint – requires substantial space |
Who Should Consider the SE5?
The SE5 is intended for listeners who value thoughtful engineering over extravagant specifications.
Five watts may appear modest on paper, but when combined with suitable loudspeakers it provides remarkably satisfying musical performance in many domestic listening environments.
If your goal is maximum sound pressure level, this is probably not the amplifier for you.
If your goal is musical enjoyment, simplicity and long-term reliability, it may be exactly what you are looking for.
The SE5 is particularly suited to:
✔ High-efficiency loudspeakers
✔ Small to medium listening rooms
✔ Jazz
✔ Acoustic music
✔ Vocals
✔ Classical music
✔ Builders who enjoy understanding how equipment works
